  1D inverted HEMT






Up


nextnano3 - Tutorial

next generation 3D nano device simulator

1D Tutorial

GaAs / AlGaAs  -  inverted High Electron Mobility Transistor (HEMT)

last updated: 15-12-22

Author: Stefan Birner

Note: This tutorial has been written in 2001. It is therefore prettly old and we have much better ones.


GaAs / AlGaAs  -  inverted High Electron Mobility Transistor (HEMT)

  • Here is the input file: invertedHEMT.in
  1. Step 7: GaAs / AlGaAs  -  inverted High Electron Mobility Transistor (HEMT) - MBE doped
  2. The sample is 1137 nm, pseudomorphically grown on GaAs.
    The interesting area is between 400 nm and 900 nm.
  3. Again, we perform a one-dimensional simulation.
  4. Just a reminder: If you need additional information about the keywords and their specifiers, you can look it up here.
  5. The quantum region is over the whole device.

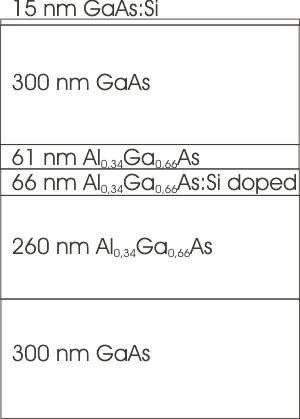

  6. The inverted HEMT device looks like this:

    _________________________________________________________________
         1             2            3               4                5           6            7           8
      GaAs       GaAs    AlGaAs   AlGaAs:Si   AlGaAs    GaAs   GaAs:Si   metal
     200 nm       300        260            66               61        300         15          50
    _________________________________________________________________
                                                                                                            ohmic contact

  7. AlxGa1-xAs
    We choose x to be 0.34.
    In principle, we have a short-period lattice (SPS)
    SPS GaAs/AlAs (2 nm / 1 nm)
    but we consider it due to the short period to be stoichiometric equivalent to Al0.34Ga0.66As which should simplify our calculations.
    It improves the thermic resistence of the structures which underly a thermic annealing step for activation of the doping materials.
  8. The flow scheme is 2:
       1. calculate nonlinear Poisson as specified in input
    For this example, we don't calculate the current.
  9. Output
    - The band structure will be saved into the directory band_structure/
    - The densities will be saved into densities/
    - The strain will be saved into strain1/

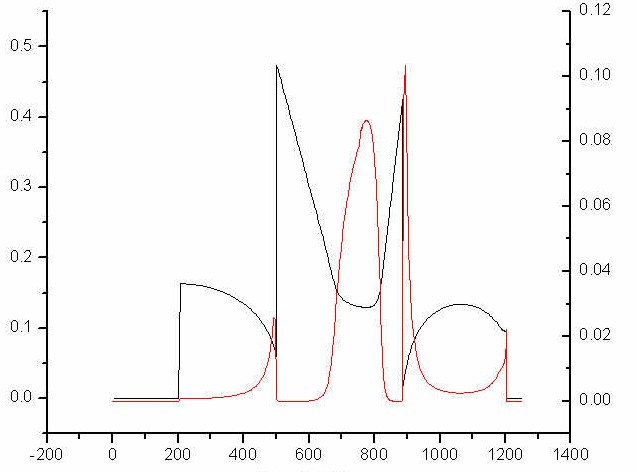

  10. We are interested in plotting conduction band 1 and the resulting electron density to visualize the two 2DEGs (two dimensional electron gas) which should look somewhat like this:

    The black curve shows conduction band 1 and the red curve shows the electron density. Clearly, one can see that there are two triangular "bags" in the conduction band at GaAs/AlGaAs interfaces. If these bags lie below the Fermi energy, 2DEGs (two dimensional electron gases) can be formed. By variation of the doping concentration one should be able to generate zero, one or two 2DEGs. By increasing the doping concentration one should observe an increase in the number of electrons in the left GaAs/AlGaAs interface, which is not desired. The task is to avoid this and to get an 2DEG on the right side by choosing an appropriate doping profile.
  11. The 15 nm GaAs layer is doped with a constant n-type Si doping (2.0*1018 cm-3). The donor level of Si in GaAs lies 5.8 meV below the conduction band.

    $doping-function

     doping-function-number = 2             !
    acts as separator
     impurity-number        = 1             !
    properties of this impurity type have
                                            !
    to be specified later
     doping-concentration   = 2.0           ! 2.0*10^18 cm^-3
     only-region            = 1187.0 1202.0 !
    actually, only boarders of a line rectangle, cube are allowed
    $end_doping-function


    $impurity-parameters

     impurity-number             = 2          !
    number, 1 or 2 ... (impurity numbers labeled in doping-function)
     impurity-name               = Si-in-GaAs !
    a name (for later use - planned to read parameters from data base)
     impurity-type               = n-type     ! n-type, p-type, trap
     number-of-energy-levels     = 1          !
    number of energy levels of this impurity
     energy-levels-relative      = 0.0058     !
    energy relative to 'nearest' band edge
                                              ! (n-type ->
    conduction band, else valence band)
                                              !
    Si in GaAs: 5.8 meV below conduction band
     degeneracy-of-energy-levels = 2          !
    degeneracy of energy levels (2 for n-type, 4 for p-type)

    $end_impurity-parameters

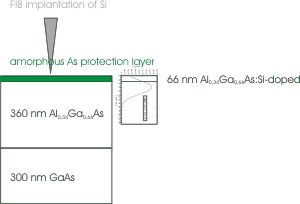

  12. The interior doping looks like this.
    Experimental details: Si is implanted by FIB (focused ion beam) on an amorphous As layer which will be removed after the implantation process.



    $doping-function

     doping-function-number     = 1
     impurity-number            = 1
     base-function-1            = gauss-1d                       !
    a valid base function name
     apply-function-1-along-dir = 0 0 1                          ! (0 0 1) , (0 1 0) , (1 0 0)
     parameters-base-function-1 = 792.677  71.064   0.0   16.955 !
    center-coordinate width minimum-value maximum-value
     doping-concentration       = 1.5                            !
    doping concentration refers to that position
     only-region                = 672.0 822.0
     position                   = 792.677

    $end_doping-function

    $impurity-parameters

     impurity-number             = 1
     impurity-name               = Si-in-GaAs
     impurity-type               = n-type
     number-of-energy-levels     = 1
     energy-levels-relativ       = 0.0058
     degeneracy-of-energy-levels = 2

    $end_impurity-parameters

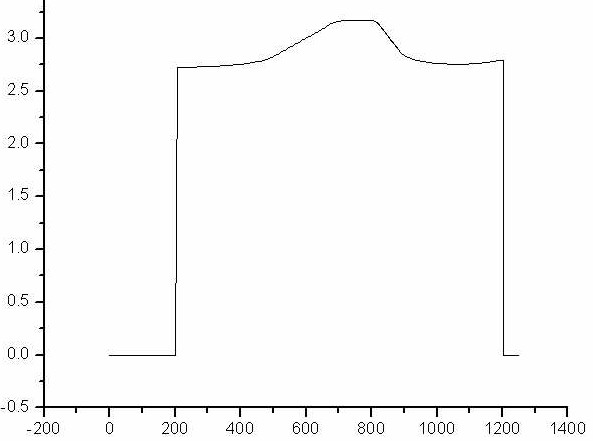

  13. A plot of the electrostatic potential looks like this:
