1.3. Main menu functions

Drop down functions of main menu. Most functions are identical to the menu buttons of each tab page. Those which do not clone a button functionality will be described here.

File

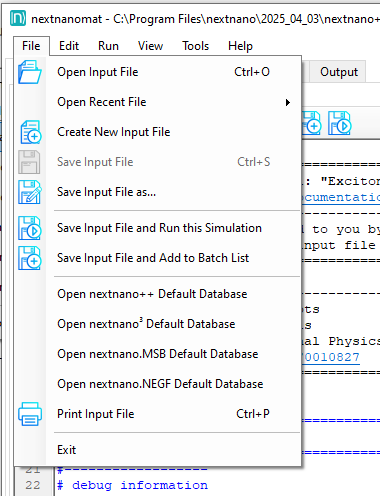

Figure 1.3.1 File main menu functions

• Create New Input File

Edit

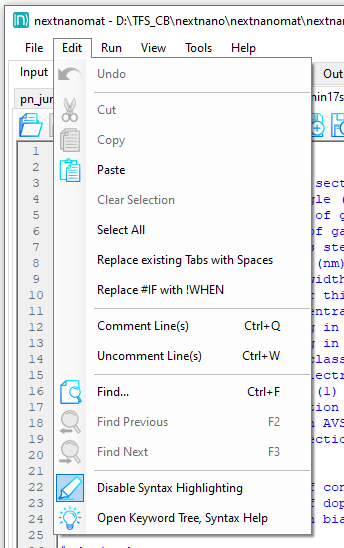

Figure 1.3.2 Edit main menu functions

• Replace IF with WHEN
• Open Keyword Tree, Syntax Help

Run

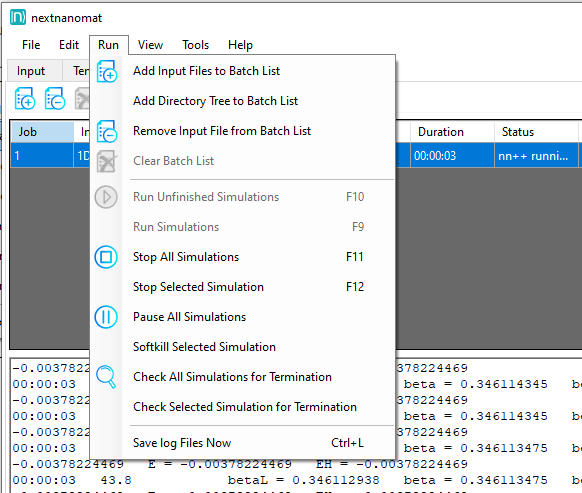

Figure 1.3.4 Run main menu functions

• Add Directory Tree to Batch List
• Softkill Selected Simulation
• Check Simulations for Termination (beta)

View

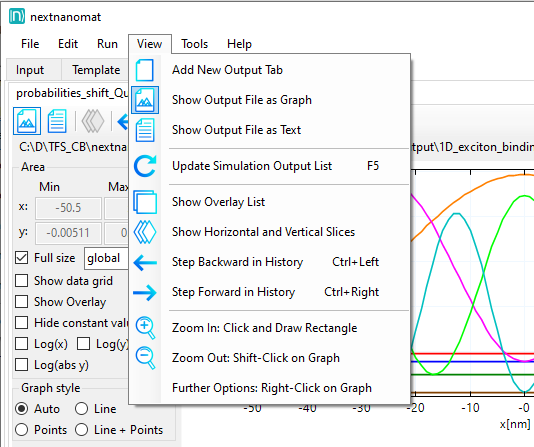

Figure 1.3.5 View main menu functions

All View main menu functions are either self-explanatory or duplicate a button’s function of the Output tab. Please refer to the corresponding documentation.

Tools

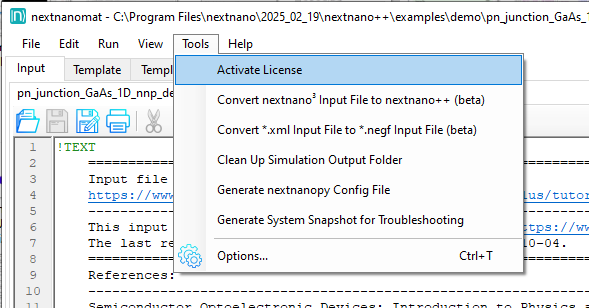

Figure 1.3.6 Tools main menu functions

• Activate license
• Convert nextnano³ input file to nextnano++
• Clean Up Simulation Output Folder
• Generate nextnanopy config file
• Generate System Snapshot for Troubleshooting

Help

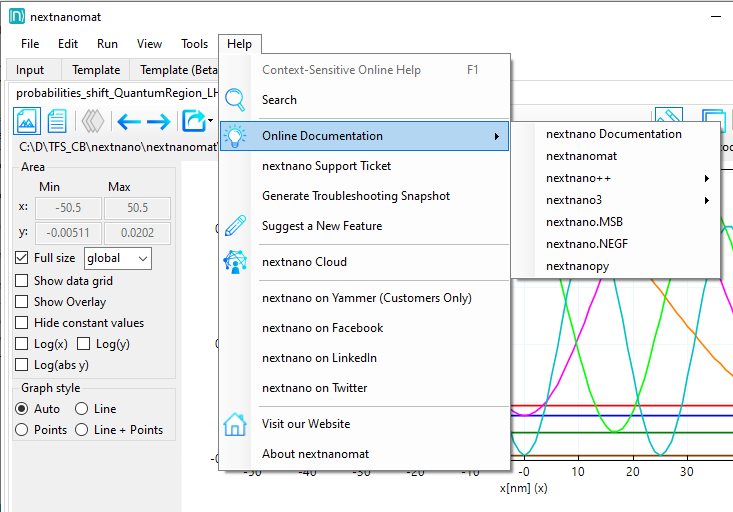

Figure 1.3.8 Help main menu functions

In the Help menu, information about the software and direct links to the nextnano online documentation of each simulation tool can be found. Furthermore, there are a couple of contact possibilities listed, from our customer support portal nextnano Help Center to our social media accounts. If you plan to contact support, the menu function Generate System Snapshot for Troubleshooting generates a text file which you can attach to your request.
