1D Tutorial
Strain and displacement tensors along different growth directions
Author:
Stefan Birner
If you want to obtain the input files that are used within this tutorial, please
check if you can find them in the installation directory.
If you cannot find them, please submit a
Support Ticket.
> 1DstrainN11.in / *_nnp.in
input file for the nextnano^{3} and nextnano++ software
> 2DstrainN11.in / *_nnp.in
input file for the nextnano^{3} and nextnano++ software
> 3DstrainN11.in / *_nnp.in
input file for the nextnano^{3} and nextnano++ software
AlAs/InAs/AlAs structure on InP
 This input file simulates a InP/InAs/AlAs structure grown
pseudomorphically on InP:
1DstrainN11.in
The structure is grown pseudomorphically on InP, i.e. the InAs is
compressively strained, the AlAs is tensilely strained. The growth direction [N11]
is along x, the interfaces are in the (y,z) plane.
 This tutorial examines the strain tensors in the
crystal and
simulation coordinate system as well as the corresponding displacement
tensors.
The following parameters are used:

InP (substrate)
InAs
AlAs
Lattice
constant a (nm)
0.58697
0.60583
0.56611
Elastic
constant c_{11} (GPa)
101.1
83.29
125.0
Elastic
constant c_{12} (GPa)
56.1
45.26
53.4
Elastic
constant c_{44} (GPa)
45.6
39.59
54.20
 [100] growth direction
(y direction along [010])
$domaincoordinates
...
hklxdirectionzb = 1 0 0 ! Miller indices
of x coordinate axis [1 0 0]
hklydirectionzb = 0 1 0 ! Miller indices
of y coordinate axis [0 1 0]
growthcoordinateaxis = 1 0 0
...
The strain tensors in the
crystal and
simulation system are identical. Offdiagonal strain components e_{ij}
are zero. The hydrostatic strain is defined as the trace of the strain tensor
(e_{hydro}=e_{xx}+e_{yy}+e_{zz}). It is useful
to talk about parallel strain (e_{}=e_{yy}=e_{zz})
and perpendicular (e_{__}=e_{xx}) strain with respect to the
interface coordinate system.
Biaxial strain (in plane of interface):
InAs: e_{ }= e_{yy }= e_{zz }
= ( a_{substrate}  a_{layer} ) / a_{layer} = 0.0311308 (3.1 % lattice mismatch)
Uniaxial strain (perpendicular to interface):
InAs: e_{__ }= e_{xx }=  D^{100 }e_{ }
=  2 (c_{12}/c_{11})_{ }e_{ }
= 0.0338332
For [100] growth direction the strain tensors and the displacement tensors
coincide.
[100]
e_{xx}=e_{__}
e_{yy}=e_{zz}=e_{}
e_{hydro}
InAs
0.338332E001
0.311308E001
0.284285E001
AlAs
0.314829E001
0.368480E001
0.422130E001
 [011] growth direction
(y direction along [011])
$domaincoordinates
...
hklxdirectionzb = 0 1 1 ! Miller indices
of x coordinate axis [1 0 0]
hklydirectionzb = 0 1 1 ! Miller indices of y
coordinate axis [0 1 0]
growthcoordinateaxis = 1 0 0
...
The strain tensors in the
crystal and
simulation system are not identical any more. Offdiagonal strain
components e_{ij} are zero apart from e_{yz}^{cr}. The
hydrostatic strain is independent of coordinate system.
Biaxial strain (in plane of interface):
InAs: e_{}=e_{yy}^{sim}_{ }= e_{zz}^{sim}_{ }
= ( a_{substrate}  a_{layer} ) / a_{layer} = 0.0311308 (same
as for [100])
Uniaxial strain (perpendicular to interface):
InAs: e_{__ }=e_{xx}^{sim}_{
}=  D^{011}e_{ }=  (c_{11}+3c_{12}2c_{44}) / (c_{11}+c_{12}+2c_{44}) e_{ }
= 0.0209642

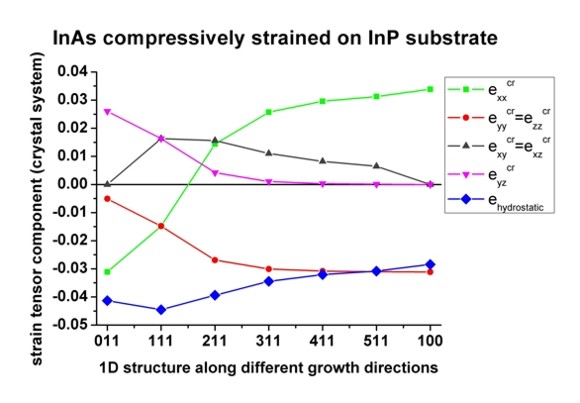

Crystal system: InAs: e_{yy}^{cr}_{ }= e_{zz}^{cr}_{ }
=  ??? e_{ }
= 0.00508332
InAs: e_{yz}^{cr}_{ }=  (c_{11}+2c_{12})
/ (c_{11}+c_{12}+2c_{44}) e_{ }
= 0.0260475
For [011] growth direction the strain tensors and the displacement tensors
coincide.
Here it is interesting to note that e_{xx}^{cr }= e_{}.
[011]
e_{xx}^{sim}=e_{__}
e_{yy}^{sim}=e_{zz}^{sim}=e_{}
e_{hydro}
InAs
0.209642E001
0.311308E001
0.412975E001
AlAs
0.227152E001
0.368480E001
0.509807E001
[011]
e_{xx}^{cr}
e_{yy}^{cr}=e_{zz}^{cr}
e_{yz}^{cr}
InAs
0.311308E001
0.508332E002
0.260475E001
AlAs
0.368480E001
0.706638E002
0.297816E001
 [111] growth direction
(y direction along [011])
$domaincoordinates
...
hklxdirectionzb = 1 1 1 ! Miller indices
of x coordinate axis [1 0 0]
hklydirectionzb = 0 1 1 ! Miller indices of y
coordinate axis [0 1 0]
growthcoordinateaxis = 1 0 0
...
The strain tensors in the
crystal and
simulation system are not identical. Offdiagonal strain components e_{ij}
are still zero in the simulation system but not in the crystal system.
Simulation system:
Biaxial strain (in plane of interface):
InAs: e_{}=e_{yy}^{sim}_{ }= e_{zz}^{sim}_{ }
= ( a_{substrate}  a_{layer} ) / a_{layer} = 0.0311308 (same
as for [100])
Uniaxial strain (perpendicular to interface):
InAs: e_{__ }=e_{xx}^{sim}_{
}=  D^{111}e_{ }=  2(c_{11}+2c_{12}2c_{44})
/ (c_{11}+2c_{12}+4c_{44}) e_{ }
= 0.0177374
Crystal system: InAs: e_{xx}^{cr}_{ }= e_{yy}^{cr}_{ }
= e_{zz}^{cr}_{ }=  (4c_{44})
/ (c_{11}+2c_{12}+4c_{44}) e_{ }
= 0.0148414
InAs: e_{xy}^{cr}_{ }= e_{xz}^{cr}_{ }
= e_{yz}^{cr}_{ }=  (c_{11}+2c_{12})
/ (c_{11}+2c_{12}+4c_{44}) e_{ }
= 0.0162894
For [111] growth direction the strain tensors and the displacement tensors
coincide.
[111]
e_{xx}^{sim}=e_{__}
e_{yy}^{sim}=e_{zz}^{sim}=e_{}
e_{hydro}
InAs
0.177374E001
0.311308E001
0.445243E001
AlAs
0.202721E001
0.368480E001
0.534238E001
[111]
e_{xx}^{cr}=e_{yy}^{cr}=e_{zz}^{cr}
e_{xy}^{cr}=e_{xz}^{cr}=e_{yz}^{cr}

InAs
0.148414E001
0.162894E001

AlAs
0.178079E001
0.190400E001

 [211] growth direction
(y direction along [011])
$domaincoordinates
...
hklxdirectionzb = 2 1 1 ! Miller indices
of x coordinate axis [1 0 0]
hklydirectionzb = 0 1 1 ! Miller indices of y
coordinate axis [0 1 0]
growthcoordinateaxis = 1 0 0
...
Offdiagonal strain components e_{ij} are not zero any more in the
simulation system. For [211] growth direction the strain tensors and the
displacement tensors do not coincide any more because the displacement tensors
are not symmetric any more. The diagonal entries still coincide e_{ii}=u_{ii}.
Biaxial strain (in plane of interface):
InAs: e_{}=e_{yy}^{sim}_{ }= e_{zz}^{sim}_{ }
= ( a_{substrate}  a_{layer} ) / a_{layer} = 0.0311308 (same
as for [100])
Uniaxial strain (perpendicular to interface):
InAs: e_{__ }=e_{xx}^{sim}_{
}=  D^{211}e_{ }=  (D^{211}=???) e_{ }
= 0.0228540
[211]
e_{xx}^{sim}=e_{__}
e_{yy}^{sim}=e_{zz}^{sim}=e_{}
e_{xz}^{sim}
e_{hydro}

u_{zx}^{sim}=du_{z}/dx
u_{xz}^{sim}=du_{x}/dz
InAs
0.228540E001
0.311308E001
0.101187E001
0.394077E001

0.202373E001 = 2e_{xz}^{sim}
0
AlAs
0.234699E001
0.368480E001
0.623832E002
0.502260E001

0.124766E001
= 2e_{xz}^{sim}
0
[211]
e_{xx}^{crr}
e_{yy}^{cr}=e_{zz}^{cr}
e_{xy}^{cr}=e_{xz}^{cr}
e_{yz}^{cr}
u_{xy}^{cr}=u_{xz}^{cr}
u_{yx}^{cr}=u_{zx}^{cr}
u_{yz}^{cr}=u_{zy}^{cr}
InAs
0.143990E001
0.269034E001
0.156100E001
0.422749E002
0.227649E001
0.845498E002
0.422749E002 = e_{yz}^{cr}
AlAs
0.924548E002
0.297358E001
0.186356E001
0.711220E002
0.230467E001
0.142244E001
0.711220E002
= e_{yz}^{cr}

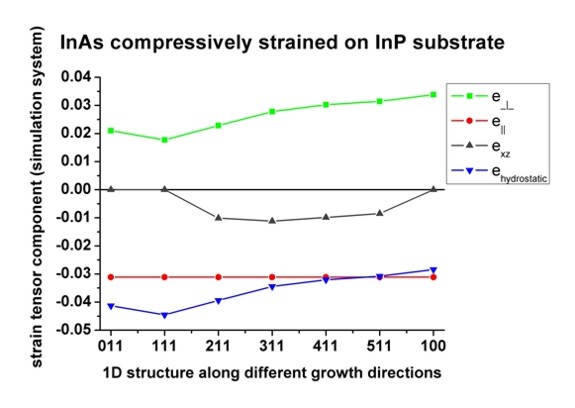

One can see that the displacement tensor for the simulation system is
rather nice as the following offdiagonal components are zero:
 u_{xy}^{sim}, u_{xz}^{sim}, u_{yz}^{sim}
are always zero for 1D structures grown along the x axis of the simulation
system.
 u_{yx}^{sim}, u_{zy}^{sim} are zero in
this particular example.

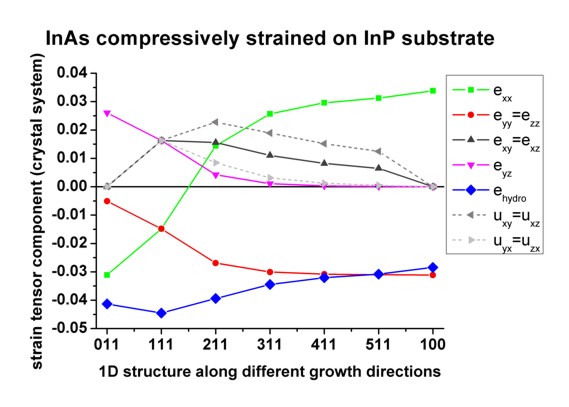

Here one should recall the definiton of the strain tensor: e_{ij} =
1/2 (u_{ij} + u_{ji}) = 1/2 (du_{i}/d_{j} + du_{j}/d_{i})
The strain tensor is thus always symmetric but the displacement tensor only
for growth directions along [001], [011], [111]. In fact, for these three
directions it is also diagonal in the simulation coordinate system. In this
particular example, u_{xy}^{cr}
is not equal to u_{yx}^{cr}.
 [311] growth direction
(y direction along [011])
$domaincoordinates
...
hklxdirectionzb = 3 1 1 ! Miller indices
of x coordinate axis [1 0 0]
hklydirectionzb = 0 1 1 ! Miller indices of y
coordinate axis [0 1 0]
growthcoordinateaxis = 1 0 0
...
See comments for [211] growth direction
Biaxial strain (in plane of interface):
InAs: e_{}=e_{yy}^{sim}_{ }= e_{zz}^{sim}_{ }
= ( a_{substrate}  a_{layer} ) / a_{layer} = 0.0311308 (same
as for [100])
Uniaxial strain (perpendicular to interface):
InAs: e_{__ }=e_{xx}^{sim}_{
}=  D^{311}e_{ }=  (D^{311}=???) e_{ }
= 0.0277907
[311]
e_{xx}^{sim}=e_{__}
e_{yy}^{sim}=e_{zz}^{sim}=e_{}
e_{xz}^{sim}
e_{hydro}

u_{zx}^{sim}=du_{z}/dx
u_{xz}^{sim}=du_{x}/dz
InAs
0.277907E001
0.311308E001
0.111833E001
0.344710E001

0.223666E001 = 2e_{xz}^{sim}
0
AlAs
0.267795E001
0.368480E001
0.714093E002
0.469164E001

0.142819E001
= 2e_{xz}^{sim}
0
[311]
e_{xx}^{crr}
e_{yy}^{cr}=e_{zz}^{cr}
e_{xy}^{cr}=e_{xz}^{cr}
e_{yz}^{cr}
u_{xy}^{cr}=u_{xz}^{cr}
u_{yx}^{cr}=u_{zx}^{cr}
u_{yz}^{cr}=u_{zy}^{cr}
InAs
0.257044E001
0.300877E001
0.110373E001
0.104316E002
0.189451E001
0.312949E002
0.104316E002 = e_{yz}^{cr}
AlAs
0.207193E001
0.338179E001
0.141397E001
0.303010E002
0.191891E001
0.909030E002
0.303010E002
= e_{yz}^{cr}
 [411] growth direction
(y direction along [011])
$domaincoordinates
...
hklxdirectionzb = 4 1 1 ! Miller indices
of x coordinate axis [1 0 0]
hklydirectionzb = 0 1 1 ! Miller indices of y
coordinate axis [0 1 0]
growthcoordinateaxis = 1 0 0
...
See comments for [211] growth direction
Biaxial strain (in plane of interface):
InAs: e_{}=e_{yy}^{sim}_{ }= e_{zz}^{sim}_{ }
= ( a_{substrate}  a_{layer} ) / a_{layer} = 0.0311308 (same
as for [100])
Uniaxial strain (perpendicular to interface):
InAs: e_{__ }=e_{xx}^{sim}_{
}=  D^{411}e_{ }=  (D^{411}=???) e_{ }
= 0.0302133
[411]
e_{xx}^{sim}=e_{__}
e_{yy}^{sim}=e_{zz}^{sim}=e_{}
e_{xz}^{sim}
e_{hydro}

u_{zx}^{sim}=du_{z}/dx
u_{xz}^{sim}=du_{x}/dz
InAs
0.302133E001
0.311308E001
0.986895E002
0.320484E001

0.197379E001 = 2e_{xz}^{sim}
0
AlAs
0.285575E001
0.368480E001
0.646539E002
0.451384E001

0.129308E001
= 2e_{xz}^{sim}
0
[411]
e_{xx}^{crr}
e_{yy}^{cr}=e_{zz}^{cr}
e_{xy}^{cr}=e_{xz}^{cr}
e_{yz}^{cr}
u_{xy}^{cr}=u_{xz}^{cr}
u_{yx}^{cr}=u_{zx}^{cr}
u_{yz}^{cr}=u_{zy}^{cr}
InAs
0.296003E001
0.308243E001
0.820438E002
0.306496E003
0.151828E001
0.122598E002
0.306496E003 = e_{yz}^{cr}
AlAs
0.253540E001
0.352462E001
0.109788E001
0.160176E002
0.155505E001
0.640704E002
0.160176E002
= e_{yz}^{cr}
 [511] growth direction
(y direction along [011])
$domaincoordinates
...
hklxdirectionzb = 5 1 1 ! Miller indices
of x coordinate axis [1 0 0]
hklydirectionzb = 0 1 1 ! Miller indices of y
coordinate axis [0 1 0]
growthcoordinateaxis = 1 0 0
...
See comments for [211] growth direction
Biaxial strain (in plane of interface):
InAs: e_{}=e_{yy}^{sim}_{ }= e_{zz}^{sim}_{ }
= ( a_{substrate}  a_{layer} ) / a_{layer} = 0.0311308 (same
as for [100])
Uniaxial strain (perpendicular to interface):
InAs: e_{__ }=e_{xx}^{sim}_{
}=  D^{511}e_{ }=  (D^{511}=???) e_{ }
= 0.0314570
[511]
e_{xx}^{sim}=e_{__}
e_{yy}^{sim}=e_{zz}^{sim}=e_{}
e_{xz}^{sim}
e_{hydro}

u_{zx}^{sim}=du_{z}/dx
u_{xz}^{sim}=du_{x}/dz
InAs
0.314570E001
0.311308E001
0.847870E002
0.308047E001

0.169574E001 = 2e_{xz}^{sim}
0
AlAs
0.295219E001
0.368480E001
0.563906E002
0.441740E001

0.112781E001
= 2e_{xz}^{sim}
0
[511]
e_{xx}^{crr}
e_{yy}^{cr}=e_{zz}^{cr}
e_{xy}^{cr}=e_{xz}^{cr}
e_{yz}^{cr}
u_{xy}^{cr}=u_{xz}^{cr}
u_{yx}^{cr}=u_{zx}^{cr}
u_{yz}^{cr}=u_{zy}^{cr}
InAs
0.312618E001
0.310333E001
0.648318E002
0.975671E004
0.124785E001
0.487835E003
0.975671E004 = e_{yz}^{cr}
AlAs
0.275593E001
0.358666E001
0.889403E002
0.981324E003
0.128815E001
0.490662E002
0.981324E003
= e_{yz}^{cr}
 [321] growth direction
(y direction along [111])
$domaincoordinates
...
hklxdirectionzb = 3 2 1 ! Miller indices
of x coordinate axis [1 0 0]
hklydirectionzb = 1 1 1 ! Miller indices of y
coordinate axis [0 1 0]
growthcoordinateaxis = 1 0 0
...
Biaxial strain (in plane of interface): InAs: e_{}=e_{yy}^{sim}_{
}= e_{zz}^{sim}_{ }= ( a_{substrate}  a_{layer} ) / a_{layer} = 0.0311308 (same
as for [100]) Uniaxial strain (perpendicular to interface): InAs: e_{__
}=e_{xx}^{sim}_{ }=  D^{321}e_{
}=  (D^{321}=???) e_{ }= 0.0223345
[321]
e_{xx}^{sim}=e_{__}
e_{yy}^{sim}=e_{zz}^{sim}=e_{}
e_{xy}^{sim}
e_{xz}^{sim}
e_{hydro}
u_{yx}^{sim}=du_{y}/dx
u_{zx}^{sim}=du_{z}/dx
u_{xy}^{sim}=u_{xz}^{sim}
InAs
0.223345E001
0.311308E001
0.871721E002
0.139475E002
0.399271E001
0.174344E001 = 2e_{xy}^{sim}
0.278950E002 = 2e_{xz}^{sim}
0
AlAs
0.232538E001
0.368480E001
0.528954E002
0.515392E003
0.504421E001
0.105791E001
= 2e_{xy}^{sim}
0.103078E002
= 2e_{xz}^{sim}
0
[321]
e_{xx}^{crr}
e_{yy}^{cr}
e_{zz}^{cr}
e_{xy}^{cr}
e_{xz}^{cr}
e_{yz}^{cr}
InAs
0.116554E001
0.221557E001
0.294269E001
0.209935E001
0.968697E002
0.394774E002
AlAs
0.681357E002
0.232809E001
0.339748E001
0.247292E001
0.115866E001
0.626491E002
[321]
u_{xy}^{cr}
u_{yx}^{cr}
u_{xz}^{cr}
u_{zx}^{cr}
u_{yz}^{cr}
u_{zy}^{cr}
InAs
0.285242E001
0.134627E001
0.142621E001
0.511185E002
0.448757E002
0.340790E002
AlAs
0.291077E001
0.203506E001
0.145538E001
0.861942E002
0.678354E002
0.574628E002
 Simulation system
Now we plot the above results for [N11] growth directions. Note that [100] is
identical to ["infinity"11] growth direction. All plotted quantities are given
in the simulation system.
For [011], [111] and [100], the offdiagonal strain tensor component e_{xz}^{sim}
is zero. For the "high symmetry growth
directions" the strain and displacement tensors are diagonal. (But this
does not necessarily mean that shear strain is absent. Shear strain is only
absent if the strain tensor is diagonal in the crystal system, i.e. only for
[100] growth direction.) The hydrostatic strain e_{hy}=Tr(e_{ij}) is always negative
because we have a volume reduction (compressive strain). It has the largest
value in magnitude for [111] and the smallest in magnitude for [100]. It shows
exactly the same behaviour as the curve for e_{__}^{sim},
i.e. e_{__}^{sim} is a measure for the volume deformation in
the growth direction. The strain in the plane of interface e_{}^{sim} is constant
for all growth directions. Note that the highest value for offdiagonal strain e_{xz} occurs for
[311] growth direction (highest shear strain of any orientation).
 Crystal system
Now we plot the above results for [N11] growth directions. Note that [100] is
identical to ["infinity"11] growth direction. All plotted quantities are given
in the crystal system.
The hydrostatic strain e_{hy}=Tr(e_{ij}) is identical to the
plot of the simulation system. (The trace of a matrix is independent of
coordinate system.) It is always negative because we have a volume reduction
(compressive strain). It has the largest value in magnitude for [111] and the
smallest in magnitude for [100].
For [111] growth direction, e_{xx}^{cr}=e_{yy}^{cr}=e_{zz}^{cr}
and e_{xy}^{cr}=e_{xz}^{cr}=e_{yz}^{cr}.
All offdiagonal components are zero only for [100] growth direction (no shear
strain). For all other orientations we have shear strain. Shear strain (with
respect to the crystal system) is responsible for piezoelectric effects.
The offdiagonal components e_{xy}^{cr}=e_{xz}^{cr}
are zero for [011] growth direction but the offdiagonal component e_{yz}^{cr}
is not.
 Here the same picture is plotted again (crystal system) but this
time including the important components of the displacement tensor that are
responsible for the fact that the displacement tensor is not symmetric any
more for [211], [311], [411] and [511].
The strain tensor is defined as: e_{ij} = 1/2 (u_{ij} + u_{ji})
= 1/2 (du_{i}/d_{j} + du_{j}/d_{i})
Thus:
e_{xy}^{cr
}= 1/2 (u_{xy}^{cr}+u_{yx}^{cr}).
For the high symmetry growth direction [100], [011], [111] the displacement
tensor is symmetric because
u_{xy}^{cr}=u_{yx}^{cr}=e_{xy}^{cr}.
 Strain has important effects:
 piezoelectric fields: See Tutorial on
piezoelectricity.
 shifts and splittings of conduction and valence bands:
See Tutorial on deformation potentials.
 strain changes the k.p Hamiltonian
 Strain can be used to tailor the electronic and optical properties of
heterostructures.
