Electron wave functions in a cylindrical well (2D Quantum Corral)

Author: Stefan Birner

==> This is the old website: A new version of this tutorial can be found here.

 -> 2DQuantumCorral_nn3.in / *_nnp.in  - input file for the nextnano³ and nextnano++ software

Electron wave functions in a cylindrical well (2D Quantum Corral)

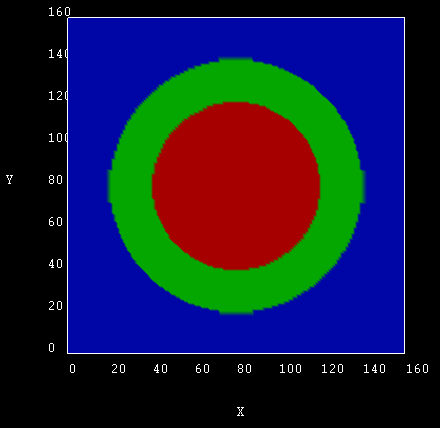

A cylindrical InAs quantum well (diameter 80 nm) is surrounded by a cylindrical GaAs barrier (20 nm) which is surrounded by air.
The whole sample is 160 nm x 160 nm.

We assume infinite GaAs barriers. This can be achieved by a circular quantum cluster with Dirichlet boundary conditions, i.e. the wave function is forced to be zero in the GaAs barrier. The electron mass of InAs is assumed to be isotropic and parabolic (m_e =  0.026 m₀). Strain is not taken into account.

Electron wave functions

The size of the quantum cluster is a circle of diameter 80 nm.

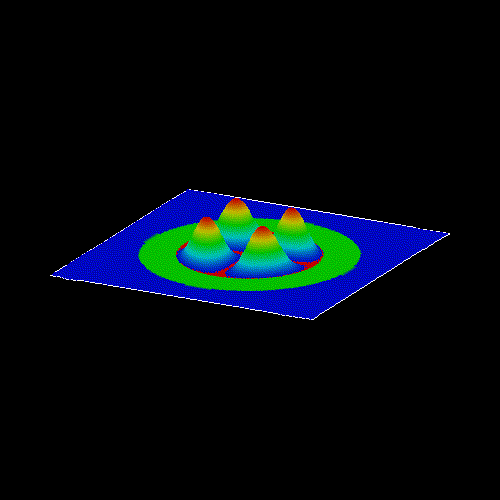

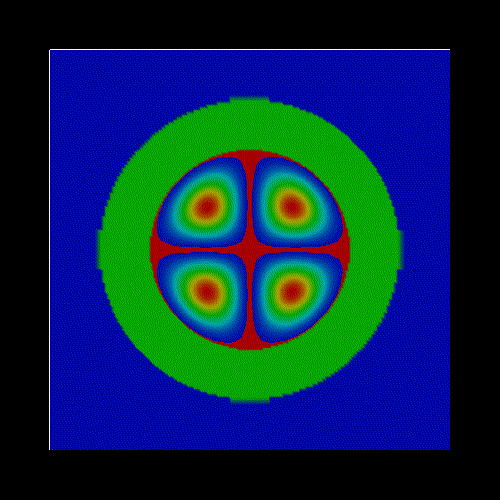

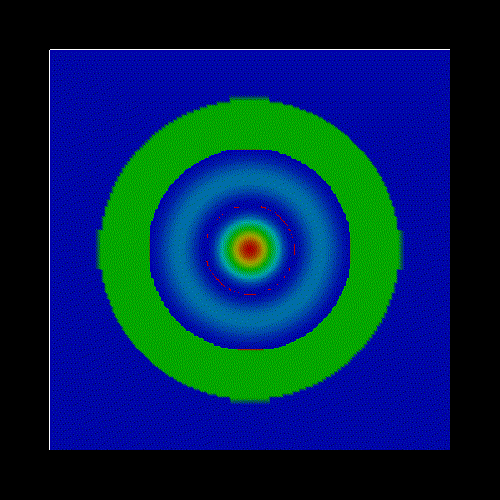

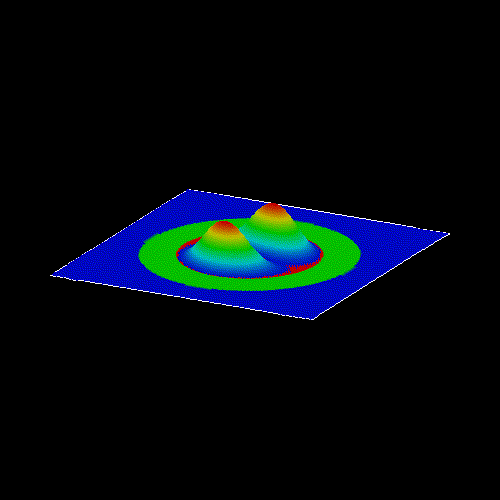

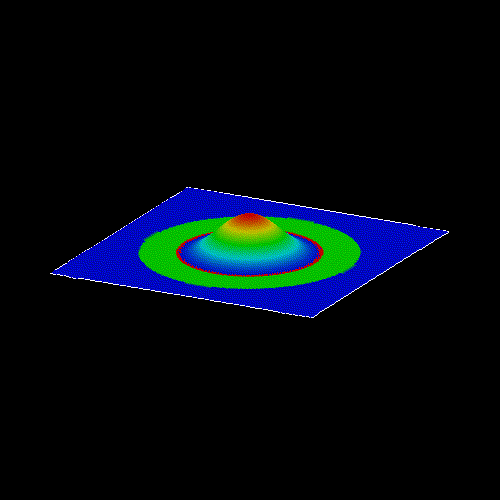

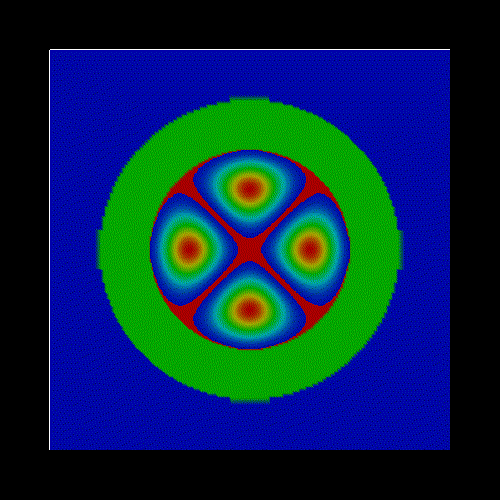

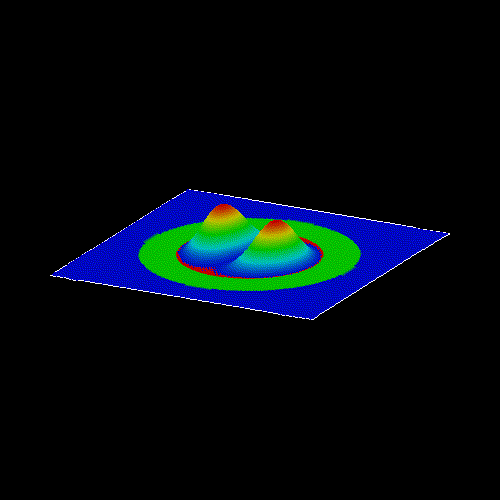

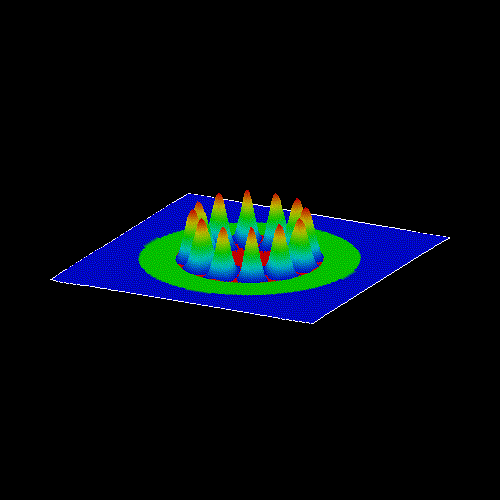

The following figures shows the square of the electron wave functions (i.e. psi²) of the corresponding eigenstates. They were calculated within the effective-mass approximation (single-band) on a rectangular finite-differences grid.

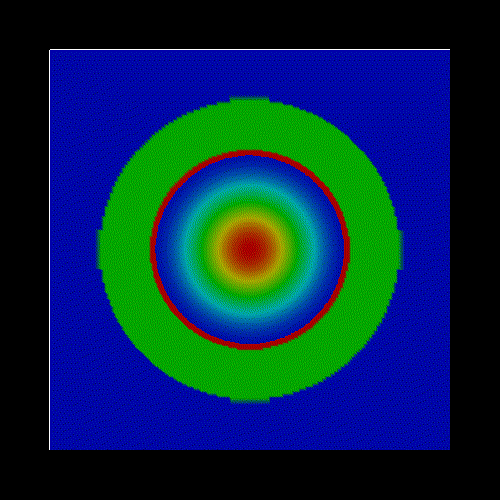

1st

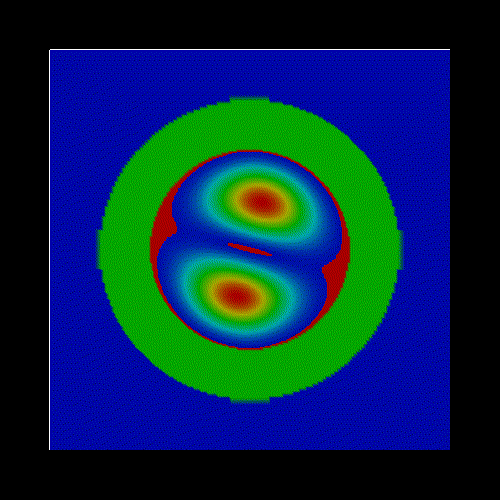

2nd

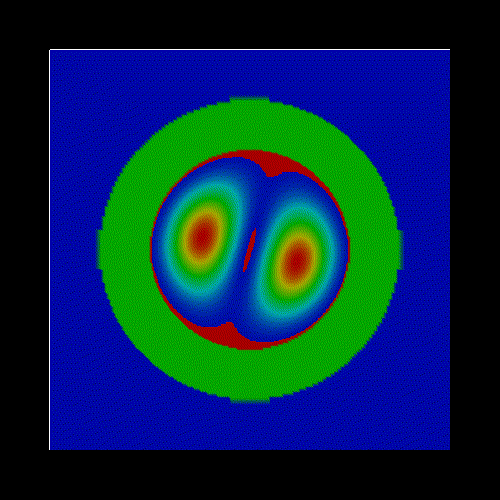

3rd

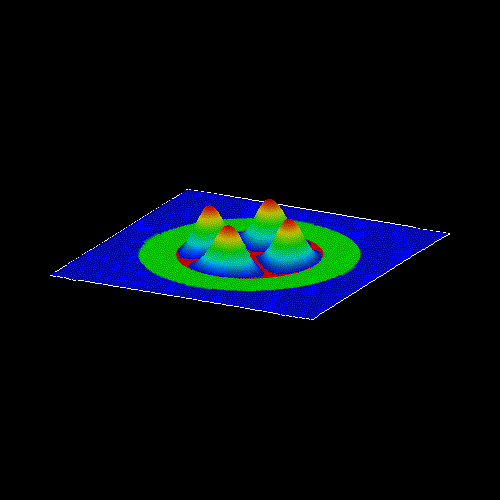

4th
5th

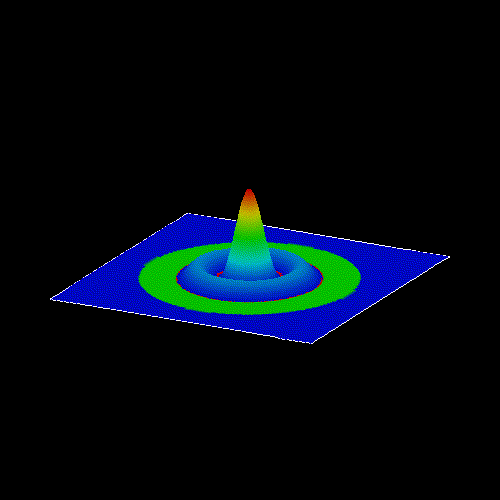

6th

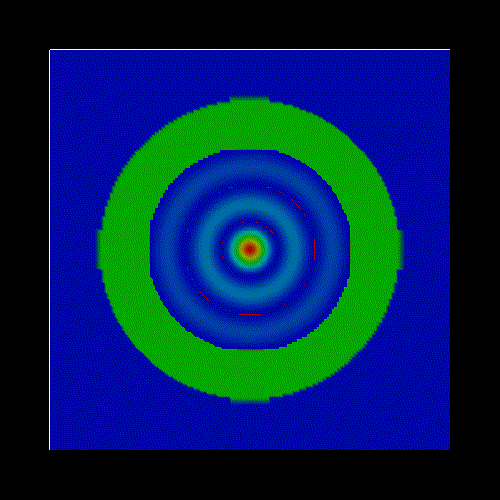

15th

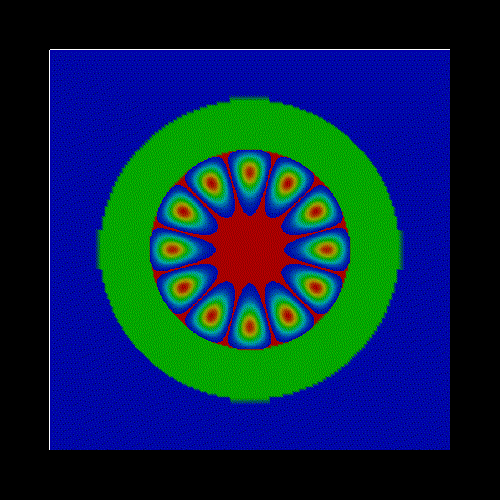

20th

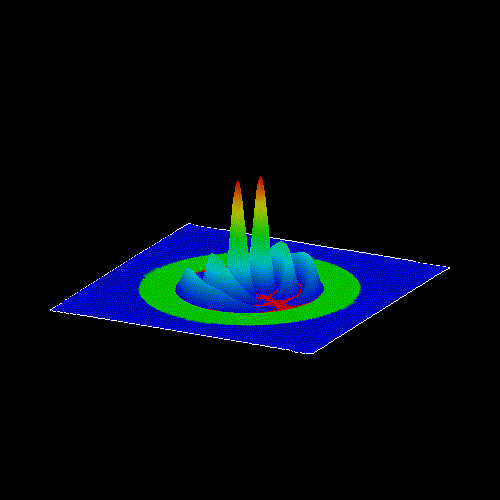

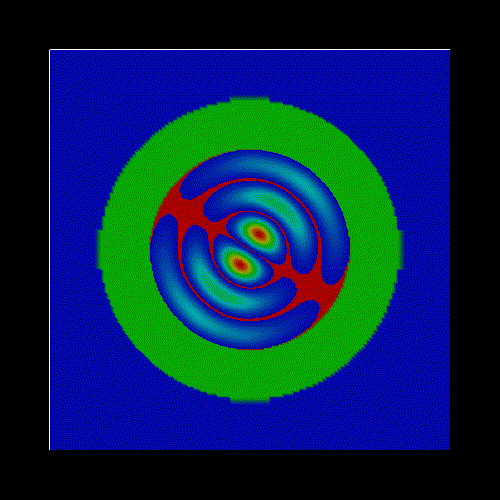

22th

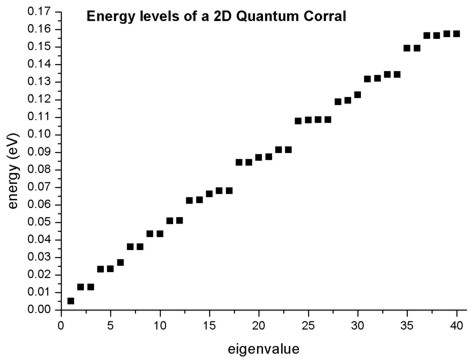

The following figure shows the energy spectrum of the quantum corral. (The zero of energy corresponds to the InAs conduction band edge.)



One can clearly see the two-fold degeneracies of the states
2, 3
4, 5
7, 8
9, 10
11, 12
13, 14
16, 17
18, 19
20, 21
22, 23
24, 25
26, 27
28, 29
31, 32
33, 34
35, 36
37, 38
39, 40

The parameters of the quantum corral are the following:
- radius: a = 40 nm
- m_e =  0.026 m₀
- V(r) = 0 for r < a
- V(r) = infinity for r > a

The energies are: E_nl = h_bar² / (2m_e a²) * j_l,n²

which can be simplified to this formula: E_nl = 0.0381 / (m_e a²) eV * j_l,n²
In the latter formula, m_e is dimensionless and a in units of [nm]. (In the formula above, m_e is in units of [m₀] and a in [m].)

There is a formula to approximate j_l,n:  j_l,n = ( n + 1/2  | l |  - 1/4 ) pi
which is accurate as n -> infinity.
However, it seems that this formula is not accurate enough to compare the results to the nextnano³ results..


Further details about the analytical solution of the cylindrical quantum well with infinite barriers can be found in:

     The Physics of Low-Dimensional Semiconductors - An Introduction
     John H. Davies
     Cambridge University Press (1998)
